C-LINE:
VP2

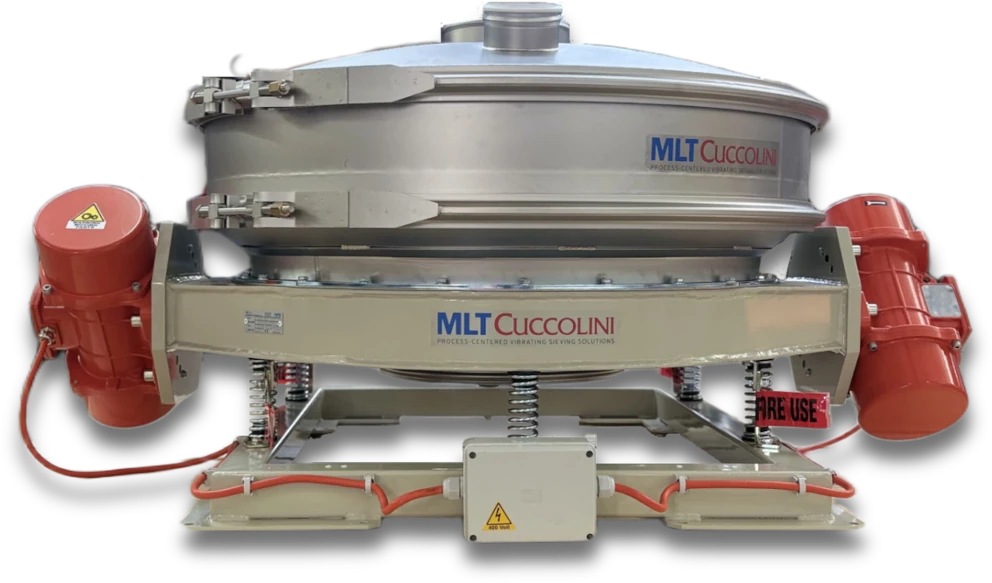

VP2 circular vibrating sieve with
twin opposed side motor vibrators
Our VP2 vibrating sieve, with twin opposed side motor vibrators, handles safety sieving in the mesh range between 0.8 and 10 mm and with a maximum of oversize equivalent to the 3% of the product total volume, for intercepting foreign particles in the product flow.
Key benefits
Technical features
| Feature | specification |
|---|---|
| Sizes | 500 / 800 / 900 / 1200 / 1500 |
| Number of decks | 1 |
| Contact parts with the product | completely in inox steel Aisi 304 or 316 |
| Internal finishes | microshotblasting / silk-finishing / mirror-polished |
| Gaskets and rubber parts | EPDM/ silicone |
| Mesh cleaning | with balls under the mesh; with self-vibrating cleaning element above the mesh for cohesive products |
| Tights | Quick clamp up to size 800; bolted from size 900 upwards |
| Installation | bolted to the ground or on a walkable structure |
| Note | pharmaceutical version is called VPF2 |
Machine sizes and performance data refer exclusively to MLT products and should not be considered directly comparable with equipment from other manufacturers.

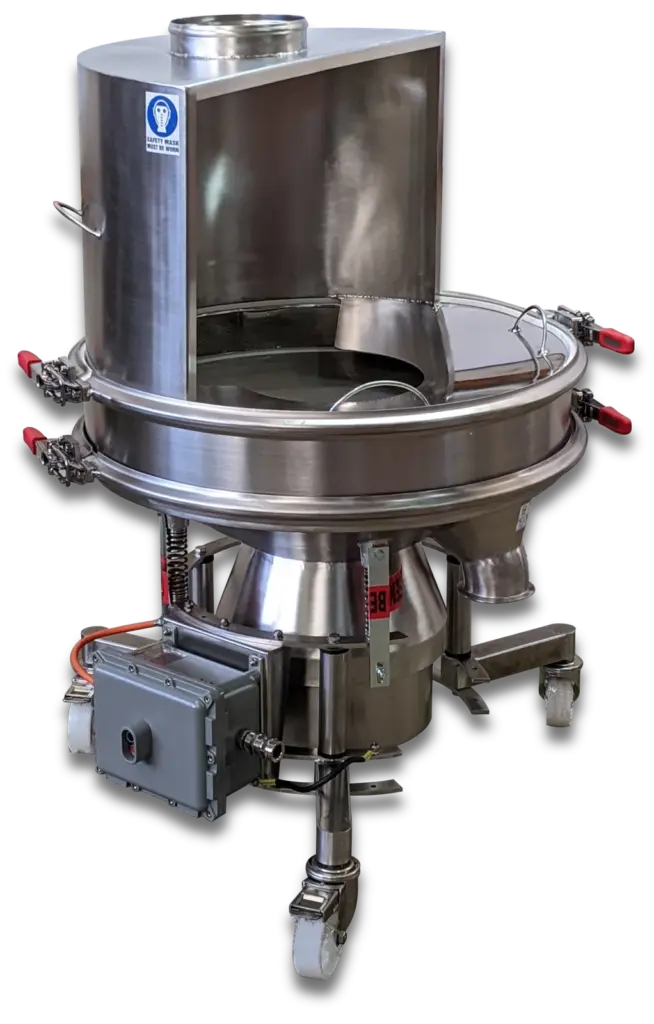

Pharmaceutical version
For pharmaceutical applications, the machine is available in a dedicated configuration identified as VPF2, developed to meet the specific requirements of the pharmaceutical industry.
Applications
Explore some of our most popular applications
Versatile by design, customizable by choice.
Over 300 applications have been optimized with MLT Cuccolini’s adaptable solutions
built around your specific requirements.
