X-LINE:
RS/RD

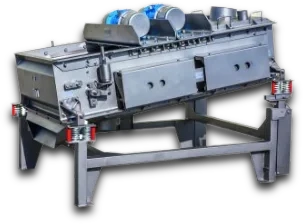

RS/RD rectangular multifrequency vibrating screen
Our RS/RD rectangular multifrequency vibrating screen, with a single or twin motor vibrators and patented MFV component, handles safety sieving and classifications of powder and granules products with critical characteristics in the range of d decks and mesh between 3 mm and 10 µm
Key benefits
Technical features
Installationbolted to the ground or on a walkable structure
| Feature | specification |
|---|---|
| Sizes | For dry or wet screening: 1506 For dry screening: 2310 / 2814 / 3514 For wet screening: 2010 / 2814 / 3514 |
| Number of decks | 1 to 2 decks |
| Contact parts with the product | completely in inox steel Aisi 304 or 316 |
| Internal finishes | microshotblasting |
| Gaskets and rubber parts | EPDM |
| Mesh cleaning | automatic |
| Note | sieving tests may be necessary to define the correct sieve configuration. Start-up, routine and extraordinary maintenance require the support of our Aftermarket Division. Food or Pharmaceutical versions are not available. |
Machine sizes and performance data refer exclusively to MLT products and should not be considered directly comparable with equipment from other manufacturers.
Applications
Explore some of our most popular applications
Versatile by design, customizable by choice.
Over 300 applications have been optimized with MLT Cuccolini’s adaptable solutions
built around your specific requirements.
