T-LINE:
VTU

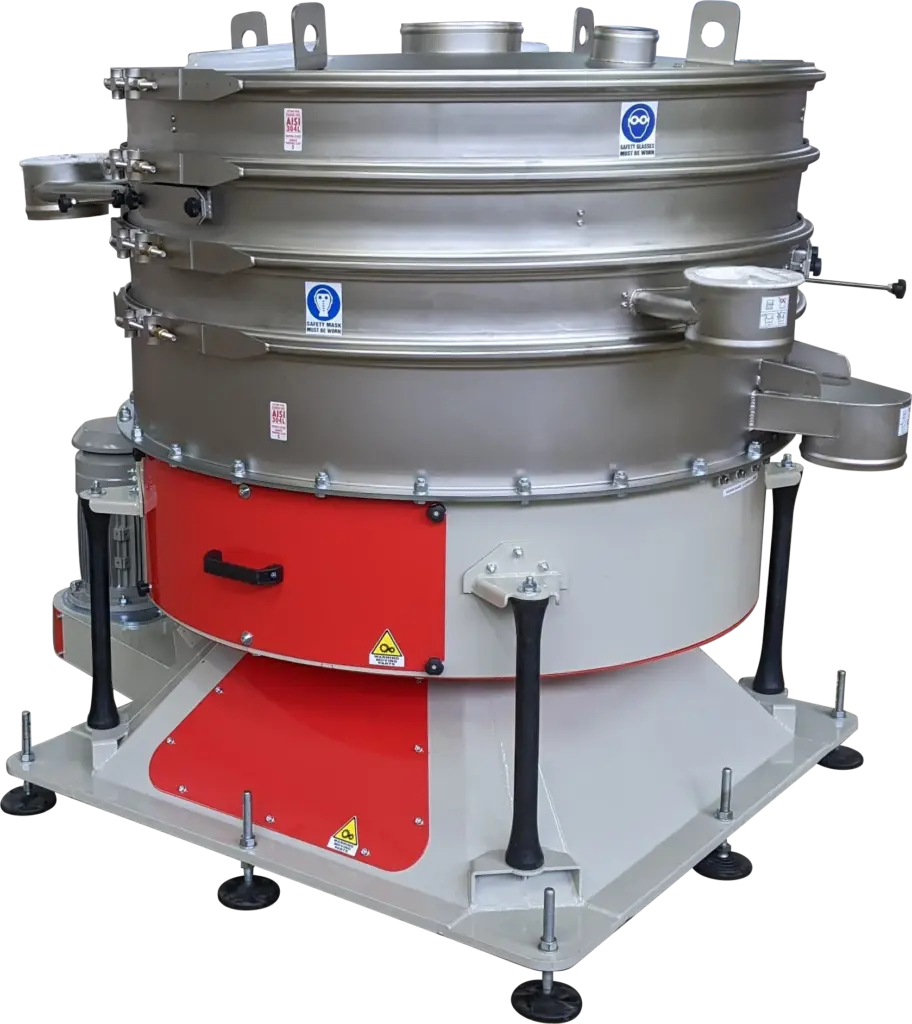

VTU circular nutation sieve with belt and pulley transmission
Our VTU circular nutation sieve or tumbler, with belt and pulley transmission, handles powders and granules products classification up to 4 decks, in a range of roughly 10 mm to 300 µm
Key benefits
Technical features
| Feature | specification |
|---|---|
| Sizes |
900 / 1200 / 1500 / 2000 / 2400 |
| Number of decks |
1 up to 4 decks |
| Contact parts with the product |
completely in inox steel Aisi 304 or 316 |
| Internal finishes |
microshotblasting / silk-finishing / mirrot-polished |
| Gaskets and rubber parts | EPDM/ silicone |
| Mesh cleaning |
with balls under the mesh; with self-vibrating cleaning element above the mesh for cohesive products |
| Tights |
bolted from size 900 up to 1500; with tie-rods from 2000 upwards |
| Installation |
bolted to the ground or on a walkable structure |
| Notes |
sieving tests may be necessary to define the correct sieve configuration. Start-up, routine and extraordinary maintenance require the support of our Aftermarket Division. |
Machine sizes and performance data refer exclusively to MLT products and should not be considered directly comparable with equipment from other manufacturers.
